액면계, 수면계 (Level Gauges)

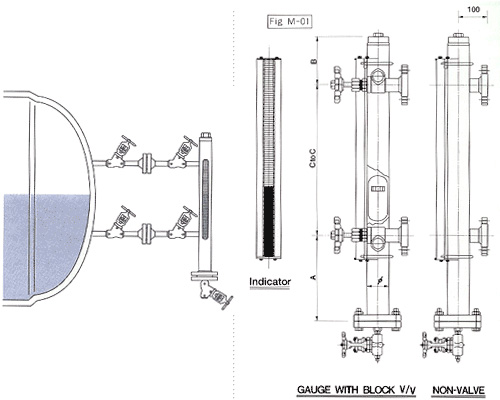

자석식 레벨게이지(금속튜브)
( Model Number : KMF-25A, KMF-50A )
Add to Basket Inquire now
자석식 레벨게이지(금속튜브)

  • Specifications :
    Metal Tube : STS304, STS316, Titanium, Monel, Hastelloy
    Float material: STS316, Titanium, Monel, Hastelloy

  • Engineering Data;
    KMF-25A :
    - chamber=dia.34
    - Float=22x400L
    - Sp.Gr.=0.8 - 120 deg.C x 20Kg/cm2

    KMF-50A:
    - chamber=dia.60.5
    - Float=50.8x600L
    - Sp.Gr.=0.5 - 400 deg.C x 150Kg/cm2
    Center to Center (C to C): 300-5000Indication accuracy : ±15mm (density=1.0)

  • KMF-25A/KMF-50A is a compact designed and commercial metal tube level indicatorsuitable for general application of which less than 600cp viscosity without adhesivecharacteristic.
