액면계, 수면계 (Level Gauges)

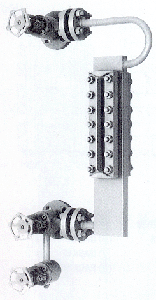

	보일러용 투시식 레벨게이지 ( Model Number : KTH80, KTH120 )

Specifications and Working pressure range:
-type KTH80 = 78kg/cm²
-type KTH120= 110kg/cm²
-Gauges are fitted with transparent (plain) glass type T
Designed for a wide range of pressure and temperature applications, and it is suitable for observation of corrosive and colored liquids and preferably used for reservoir tanks that require comparatively long visible length. Also, mica gasket is placed on the liquid side surface of the glass to protect the glass from erosion in steam service where the gauge is used under such high temperature and pressure as to cause the erosion.
When ordering a level gauge please state;
-Center to center distance (C to C)
-Size of Flange Connection (15A, 20A, 25A)
-Standard(KS, JIS, ANSI, JPI, etc.)
-Pressure class
